Ford_F150_Raptor_2014_audio_upgrade

2014 Ford F150 Raptor Audio Upgrade

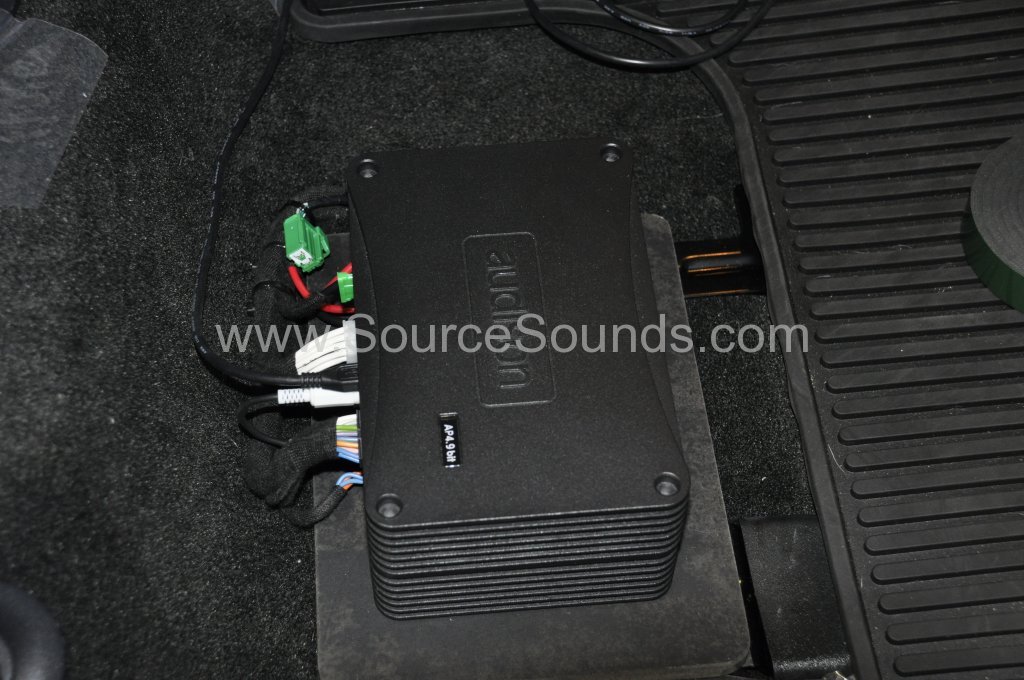

After listening to this vehicle for the first time, the customer decided it needed a major overhaul of the audio system.  After several discussions and listening tests in our showroom the customer chose a set of Rainbow SL-C6 6.50″ component speakers for the front along with a set of Rainbow coaxial speakers for the rear. These were to be powered by an Audison Prima AP4.9BIT 4 channel amplifier with built in EQ system.  We added a Hertz EBX-F20.5 8″ sub enclosure and mounted this underneath the rear seats to retain as much space as possible. This was driven from an Audison Prima AP1D mono amplifier, linked to the AP4.9BIT to utilise the BIT technology.  The entire vehicle also had a covering of Skinz sound proofing material to deaden the panels and allow the speakers to reach their potential quality.  Once the products were installed, a laptop was plugged into the Ap4.9BIT and the EQ was set according to the customers requirements.

•
•
•
•
•
•
•
•
•
•
•
•
•
